Specialty Engineering-Plastic Parts: industry applications under severe duty
Where equipment runs above 300 °C for long periods while facing strong acid/base corrosion, high-voltage insulation or high-cleanliness demands, general engineering plastics fall short and metals bring penalties in weight, corrosion or electrical insulation. Precision parts based on high-temperature polymers are replacing conventional materials in semiconductors, aerospace and high-temperature industry.
Industry drivers
- Higher process temperatures and cleanliness: front-end semiconductor and vacuum equipment are highly sensitive to outgassing, particles and cleanliness.
- Equipment reliability and life: high-temperature, corrosive and radiation duty calls for parts that stay dimensionally stable over time.
- Lightweighting and insulation: replacing steel or ceramics lowers weight and machining cost in some cases.
Application landscape
- Semiconductor and vacuum equipment: dry-etch chamber parts, sputtering insulators, CVD / PVD components.

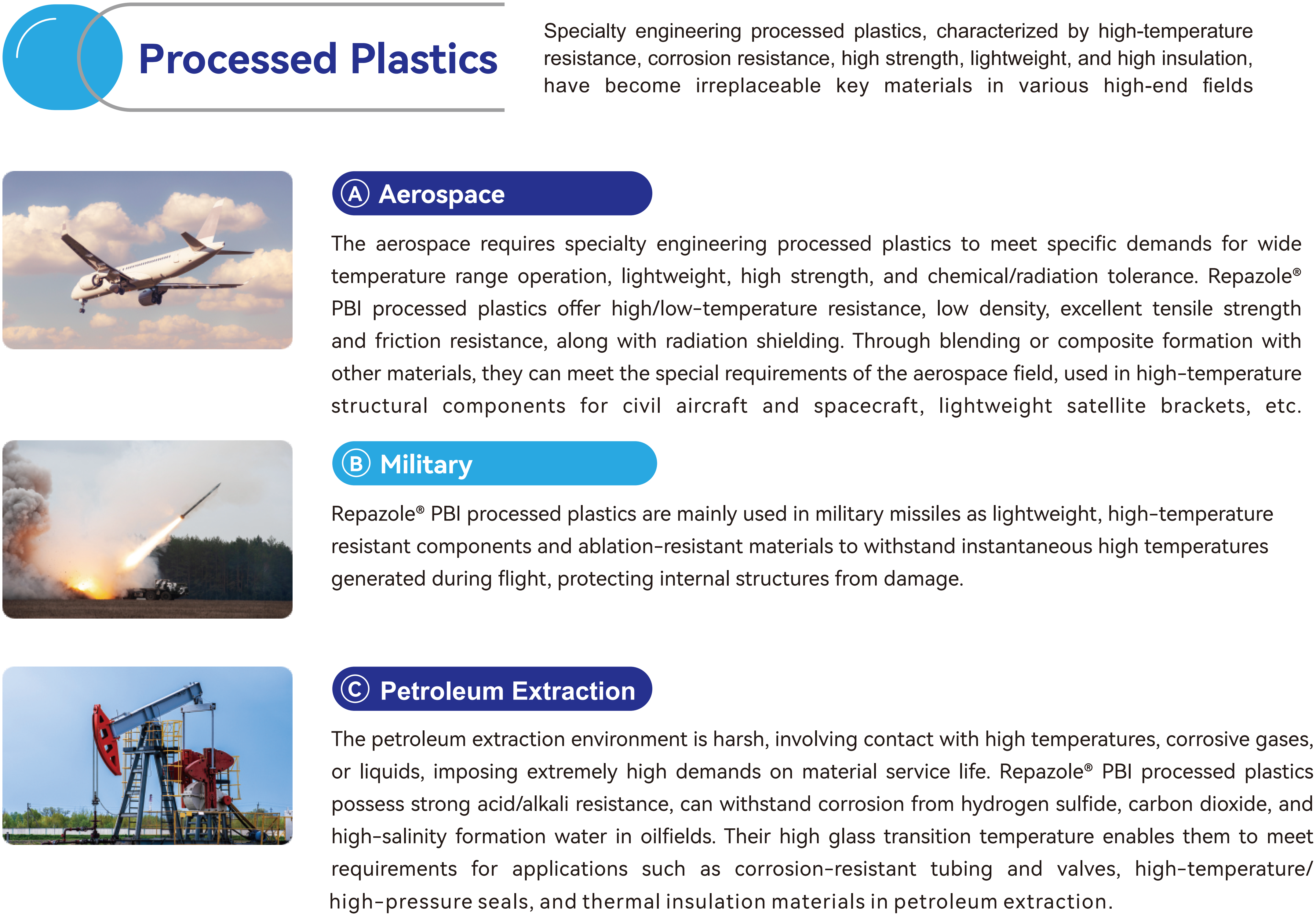

- Aerospace: non-metallic supports around engines, high-temperature load-bearing parts.
- High-temperature precision machinery: hot-runner insulating caps, welding fixtures, mould cores.
- Electrical and electronics: high-voltage insulating gaskets, connector insulators.
- Analytical and medical: high-temperature, sterilisable instrument parts.
- Sealing and radiation resistance: seals and gaskets.
Common material requirements
High long-term service temperature and heat deflection temperature, dimensional stability, chemical resistance, low outgassing and high cleanliness, electrical insulation, radiation resistance, and good machinability.
Material families and trends
Families such as PI, PAI, PEEK, PBI, PPS and PEI differ in their emphasis on temperature, mechanics and cost. As high-end manufacturing localises, demand keeps rising for high-performance polymer parts that can be machined to drawing and supplied reliably.
Why severe duty points to PBI
- A high temperature ceiling: PBI is among the highest-temperature engineering plastics, with a long-term service temperature clearly above ordinary engineering plastics — matching duty above 300 °C.
- Strength and rigidity still retained hot: it keeps useful stiffness and strength at elevated temperature, suiting load-bearing and precision parts.
- Dimensional stability and chemical resistance: low water absorption and resistance to strong acids and bases suit duty where corrosion, cleanliness and precision coincide.
- Insulation and radiation resistance: strong electrical insulation and radiation tolerance suit high-voltage and special-environment parts.
- Low-outgassing options: for clean semiconductor settings, lower-outgassing material options are available.
Within the high-temperature engineering-plastic family, PBI sits at the high end on both temperature and mechanics. Repazole® PBI sheet and rod can be machined to drawing into precision structural and insulating parts: see PBI sheet and rod specifications and machining capability
